AHI Proxy Data




Purpose of proxy data disclosure

This page provides information on radiative transfer model-based AHI simulation. Simulation data have been made public for use in AHI research and development during the pre-launch phase, and the data listed on this page can be freely used for scientific purposes. It should be noted that the data format is different from that to be disseminated in Himawari-8/-9 operation. JMA does not guarantee that the software to be used with the proxy data will work with real AHI data to be made available in the future.

Proxy data from simulation

To support research and development for Himawari-8/9 analysis products, simulation-based proxy data have been created. Figure 1 shows an example of AHI 16-band simulation. These data are generated using radiative transfer computation based on the provisional response functions of AHI. For this purpose, data from RSTAR (Nakajima and Tanaka 1986) are used.

AHI proxy from simulation

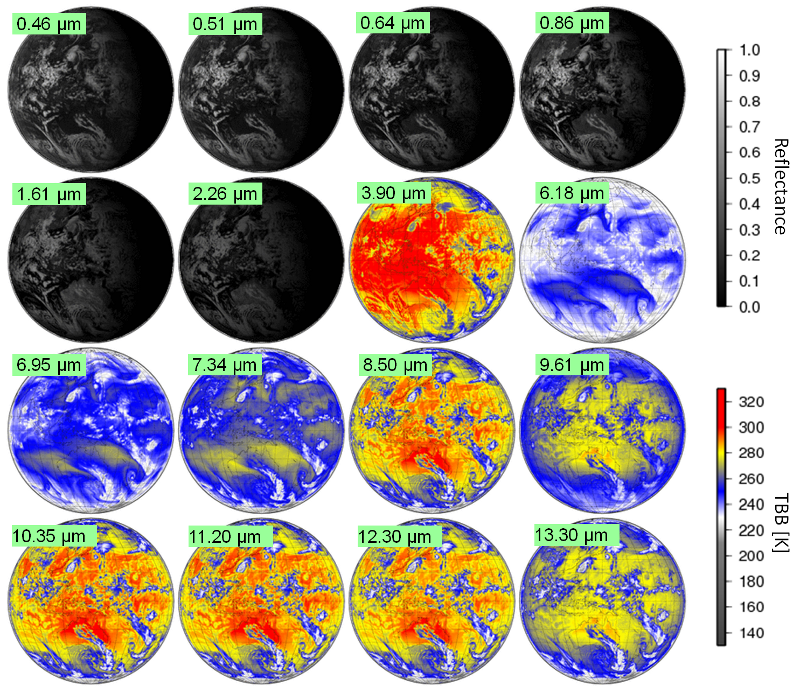

Figure 1. Simulated radiative transfer images for Himawari-8/9′s 16 AHI bands based on RSTAR (Nakajima and Tanaka 1986) and GSM (JMA 2007) data(Click to enlarge)


AHI simulation data

Table 1 lists the AHI simulation data available on this website.

Table 1. List of AHI simulation data available on the MSC/JMA website
RTM Input
NWP
Format Time Area of
coverage
Spatial
resolution
# of
bands
Simulation
data file
RSTAR GSM
(FT=0)
NetCDF 06UTC 28 Sept. 2012 60°S ≤ Lat. ≤ 60°N
80°E ≤ Lon. ≤ 200°E
0.2° x 0.2°
(601 x 601 pixels)
16 [Note]

download (7.2MB)
FT: forecast time (hours) from analysis
The addition of further simulation data is planned.


Radiative transfer calculation design

Table 2 shows RSTAR-based radiative transfer calculation design. Analysis and forecasts from JMA NWP (numerical weather prediction) are adopted as atmospheric fields. To determine surface conditions, a MODIS product provided by NASA is used. For atmospheric composition, climate conditions are currently adopted.

Table 2. Radiative transfer calculation design
Radiative transfer model Rstar6b (Nakajima and Tanaka 1986)
Longitude of sub-satellite point 140°E
SRF (Spectral Response Function) Polygonal line expressed by five points
# of vertical layers 14
Atmospheric profiles GSM (TL959L60, 20km horizontal resolution)
Surface
Wind speed  GSM
Reflectance  MODIS Surface-Reflectance Product (MOD 09)
Optical depth
Aerosol  Total-column climatology value used in the GSM
Cloud  Retrieved from GSM cloud liquid/ice water content
(Ice crystal habits: hexagonal plates, Yang et al. 2000)
Ozone 3D Climatological ozone used in the GSM (Maki et al. 2008)


Contact

  • E-mait to : JMA/MSC webmaster

Acknowledgements

JMA is grateful to the staff of the OpenCLASTR project for providing the Rstar6b package used in this work. Thanks also go to Dr. T. Nakajima, Dr. H. Takenaka and S. Fukuda for their valuable comments on our radiance simulation, and to Dr. M. Sekiguchi for preparing non-spherical ice particle scattering kernels for Rstar6b.

References

  • JMA, 2007: ′Outline of the operational numerical weather prediction at the Japan Meteorological Agency′. Appendix to WMO Numerical Weather Prediction Progress Report. Japan Meteorological Agency, Tokyo, Japan. Available at http://www.jma.go.jp/jma/jma-eng/jma-center/nwp/nwp-top.htm.
  • Maki, T., A. Ebita, T. Ishimizu, K. Nagata, M. Ikegami and T. Sasaki, 2008: The Daily 3D Ozone Produced by the Chemical Transport Model for JRA-25. Extended abstracts of Workshop on the Third WCRP Reanalysis Conference, Tokyo, Japan, 28 January - 1 February, 2008.
  • Nakajima, T. and M. Tanaka, 1986: Matrix formulation for the transfer of solar radiation in a plane-parallel scattering atmosphere. J. Quant. Spectrosc. Radiat. Transfer, 35, 13-21.
  • Yang, P., K. N. Liou, K. Wyser and D. Mitchell, 2000: Parameterization of the scattering and absorption properties of individual ice crystals. J. Geophys. Res., 105, D4, 4699-4718.
