High-resolution Cloud Analysis Information (HCAI)

High-resolution Cloud Analysis Information (HCAI) provides data on five elements: cloud mask (including dust mask), snow and ice mask, height of cloud top, type of cloud, and quality check information (the effects of stray light, quality of cloud mask and other variables). These data are derived from Himawari-8/9 satellite imagery and cover the area from 60°N to 60°S and from 80°E to 160°W with a mesh of 0.02-degree squares. HCAI is used as objective resource for local and aviation forecast operations.


Meteorological Satellite Center Technical Note No.61


Sample below are HCAI at 02 UTC on 1 April 2015.

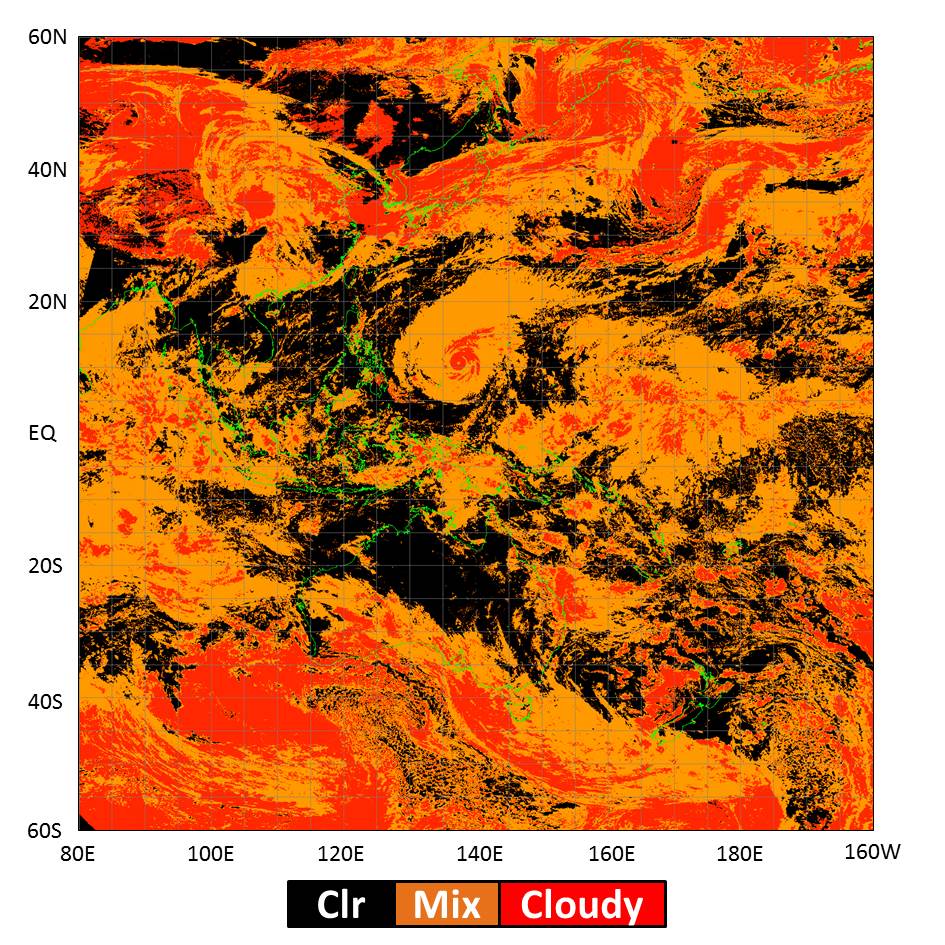

Cloud Mask

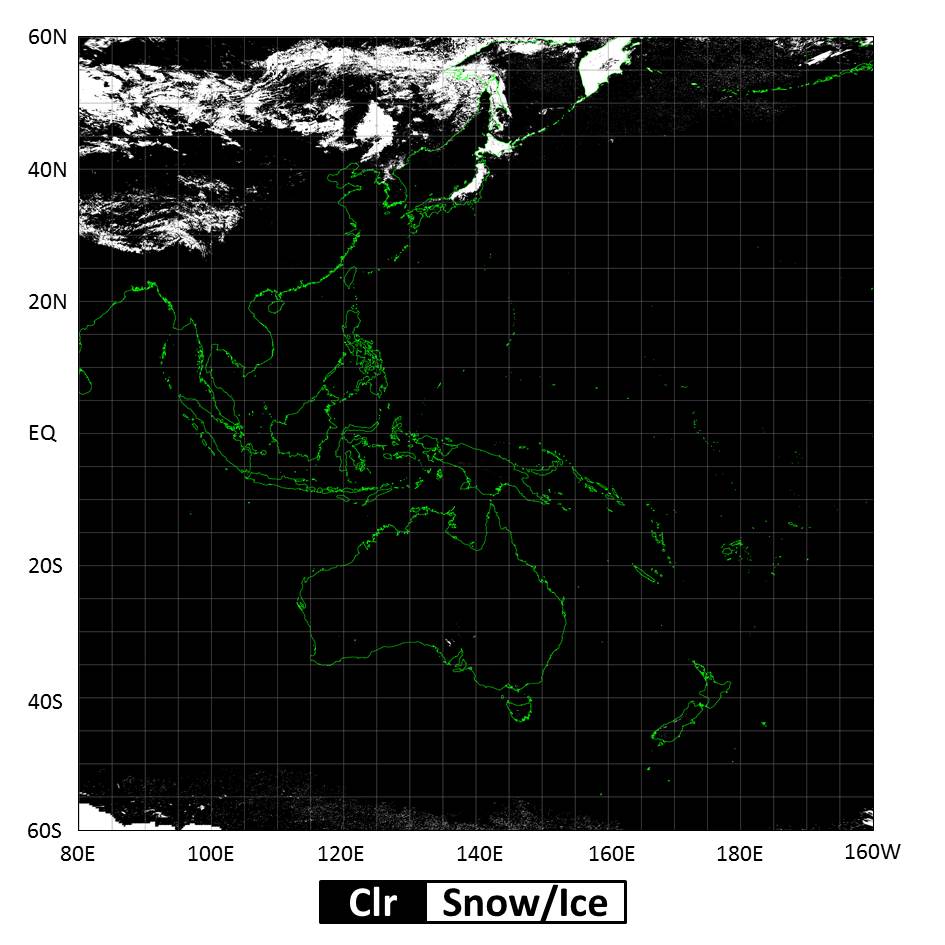

Snow and Ice Mask

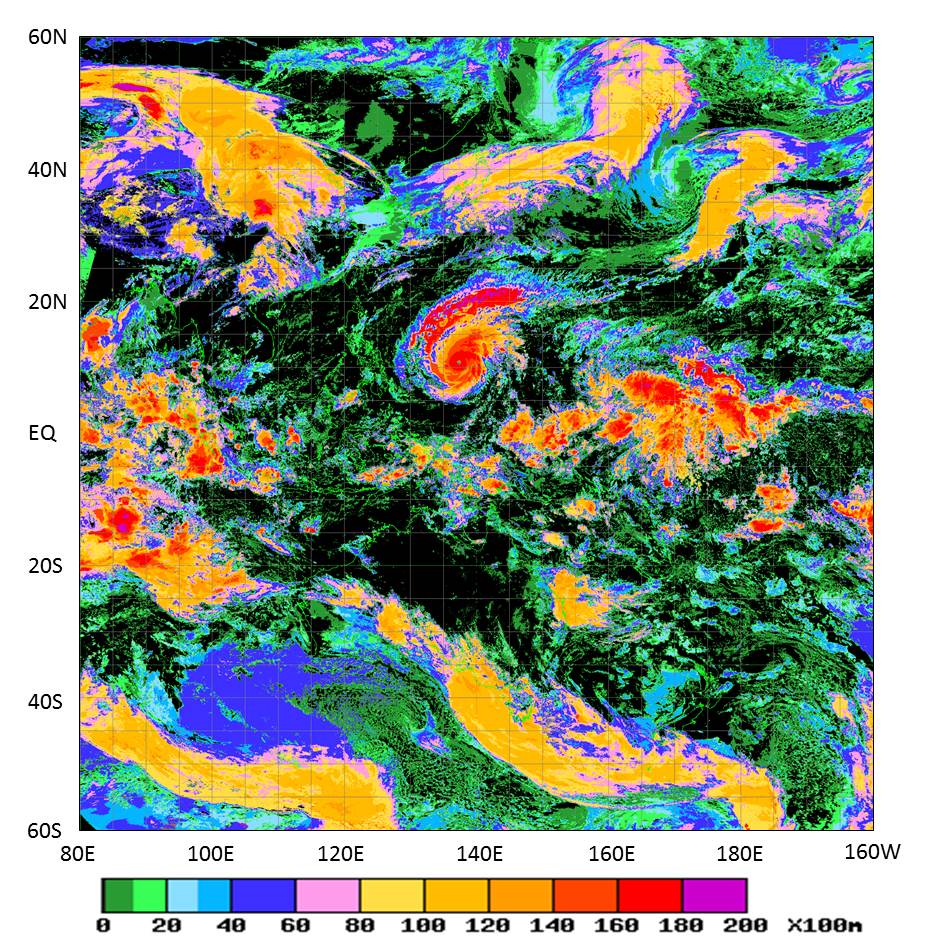

Height of Cloud Top

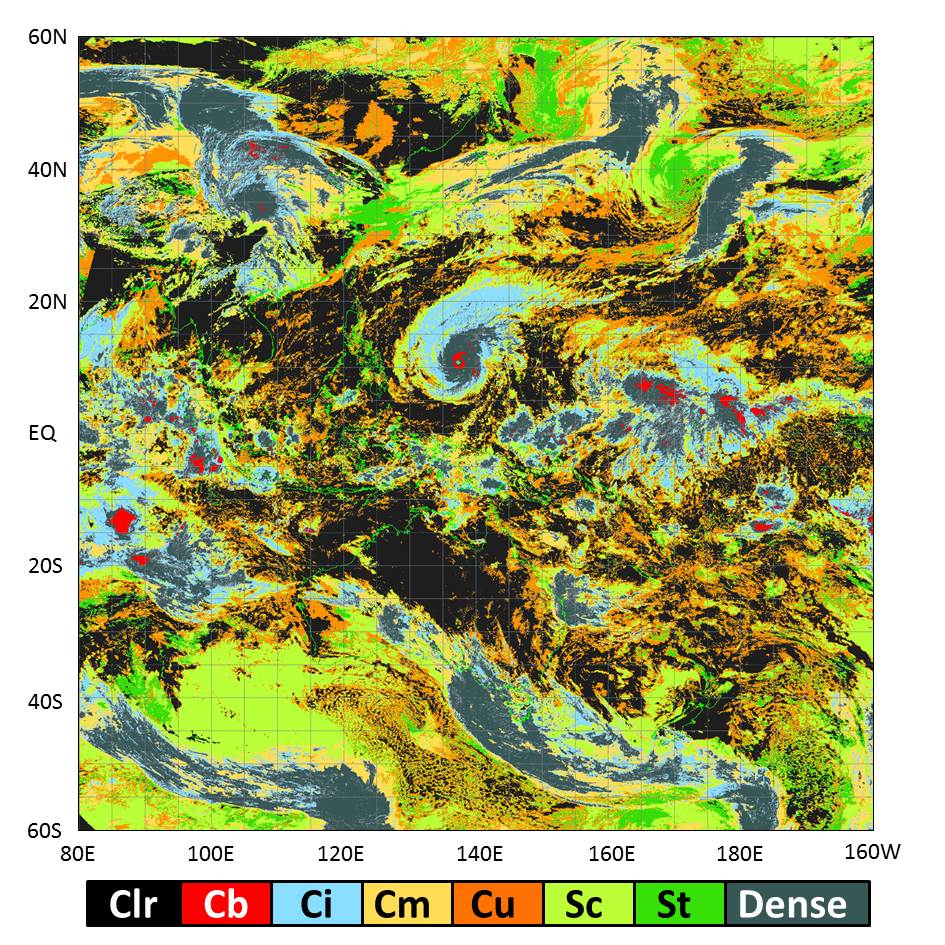

Type of Cloud

Reference: Himawari-8 imagery captured with the same timing as the above (02 UTC on April 1, 2015)

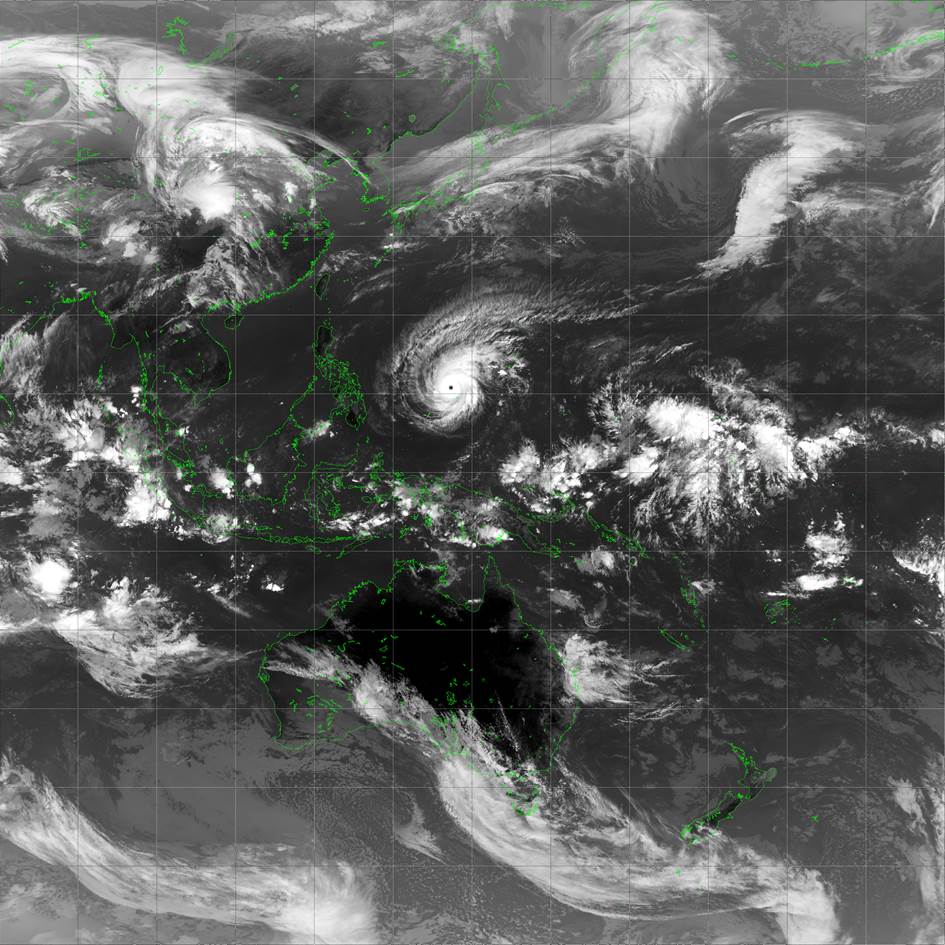

Band 13 imagery

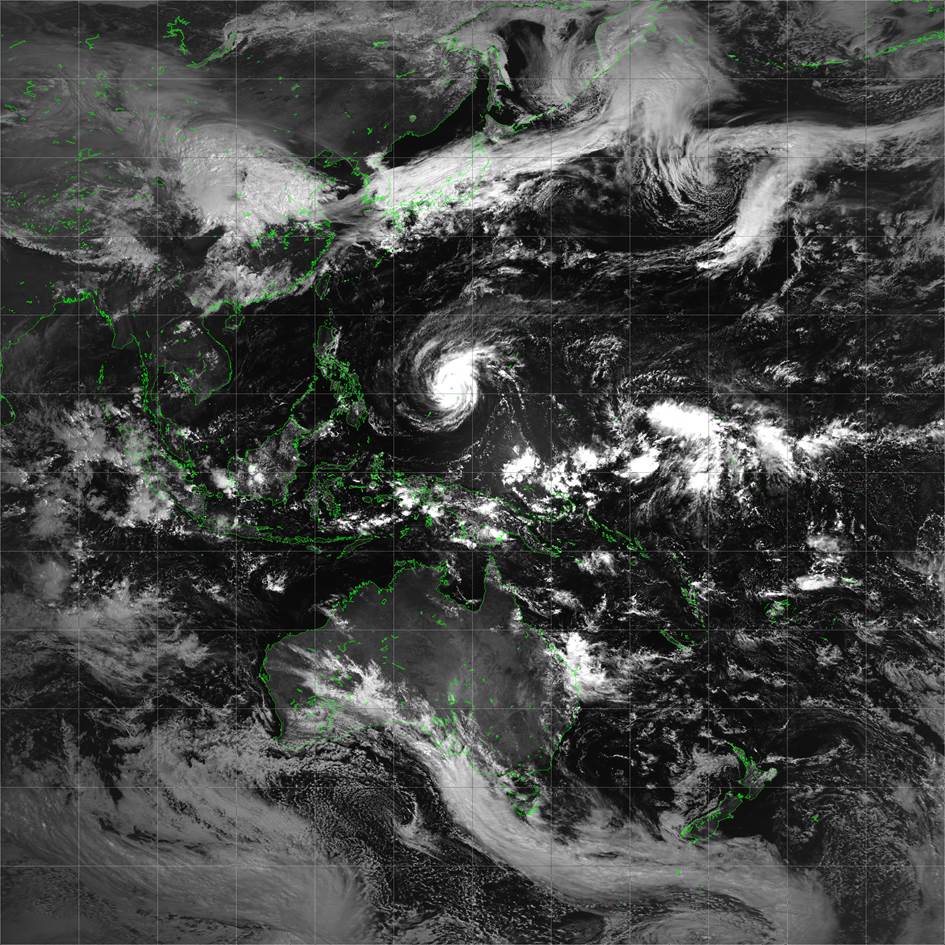

Band 3 imagery
