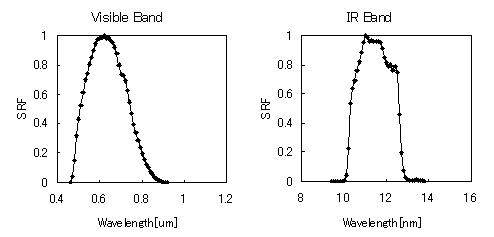

GMS-3 Spectral Response Function
27 September 1984 - 3 December 1989
| Visible Band |
IR Band |
| WL |
SRF |
WL |
SRF |
| 0.470 |
0.043 |
9.50 |
0.001 |
| 0.480 |
0.154 |
9.60 |
0.001 |
| 0.490 |
0.314 |
9.70 |
0.001 |
| 0.500 |
0.429 |
9.80 |
0.001 |
| 0.510 |
0.525 |
9.90 |
0.003 |
| 0.520 |
0.614 |
10.00 |
0.007 |
| 0.530 |
0.695 |
10.10 |
0.045 |
| 0.540 |
0.740 |
10.20 |
0.225 |
| 0.550 |
0.804 |
10.30 |
0.534 |
| 0.560 |
0.850 |
10.40 |
0.637 |
| 0.570 |
0.896 |
10.50 |
0.686 |
| 0.580 |
0.944 |
10.60 |
0.764 |
| 0.590 |
0.973 |
10.70 |
0.822 |
| 0.600 |
0.979 |
10.80 |
0.881 |
| 0.610 |
0.989 |
10.90 |
0.946 |
| 0.620 |
1.000 |
11.00 |
1.000 |
| 0.630 |
0.981 |
11.10 |
0.988 |
| 0.640 |
0.983 |
11.20 |
0.959 |
| 0.650 |
0.963 |
11.30 |
0.967 |
| 0.660 |
0.953 |
11.40 |
0.957 |
| 0.670 |
0.924 |
11.50 |
0.953 |
| 0.680 |
0.876 |
11.60 |
0.957 |
| 0.690 |
0.801 |
11.70 |
0.949 |
| 0.700 |
0.734 |
11.80 |
0.913 |
| 0.710 |
0.727 |
11.90 |
0.849 |
| 0.720 |
0.690 |
12.00 |
0.813 |
| 0.730 |
0.623 |
12.10 |
0.793 |
| 0.740 |
0.546 |
12.20 |
0.796 |
| 0.750 |
0.468 |
12.30 |
0.763 |
| 0.760 |
0.395 |
12.40 |
0.787 |
| 0.770 |
0.335 |
12.50 |
0.749 |
| 0.780 |
0.287 |
12.60 |
0.456 |
| 0.790 |
0.239 |
12.70 |
0.196 |
| 0.800 |
0.191 |
12.80 |
0.073 |
| 0.810 |
0.158 |
12.90 |
0.027 |
| 0.820 |
0.124 |
13.00 |
0.012 |
| 0.830 |
0.098 |
13.10 |
0.008 |
| 0.840 |
0.072 |
13.20 |
0.004 |
| 0.850 |
0.055 |
13.30 |
0.009 |
| 0.860 |
0.037 |
13.40 |
0.014 |
| 0.870 |
0.025 |
13.50 |
0.009 |
| 0.880 |
0.013 |
13.60 |
0.005 |
| 0.890 |
0.008 |
13.70 |
0.005 |
| 0.900 |
0.002 |
13.80 |
0.000 |
| 0.910 |
0.001 |
|
| 0.920 |
0.000 |
- WL : Wavelength (um)
- SRF : Spectral Response Function
