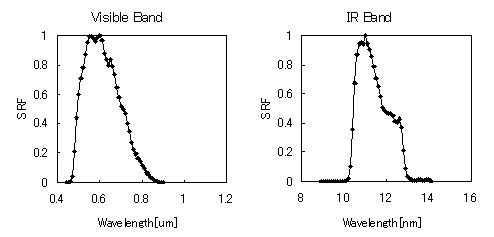

GMS Spectral Response Function
8 September 1977 - 20 December 1981; 21 January 1984 - 29 June 1984
| Visible Band |
IR Band |
| WL |
SRF |
WL |
SRF |
| 0.440 |
0.000 |
8.90 |
0.000 |
| 0.450 |
0.001 |
9.00 |
0.001 |
| 0.460 |
0.004 |
9.10 |
0.002 |
| 0.470 |
0.045 |
9.20 |
0.002 |
| 0.480 |
0.212 |
9.30 |
0.002 |
| 0.490 |
0.438 |
9.40 |
0.002 |
| 0.500 |
0.598 |
9.50 |
0.002 |
| 0.510 |
0.706 |
9.60 |
0.002 |
| 0.520 |
0.785 |
9.70 |
0.002 |
| 0.530 |
0.871 |
9.80 |
0.002 |
| 0.540 |
0.952 |
9.90 |
0.002 |
| 0.550 |
0.995 |
10.00 |
0.002 |
| 0.560 |
0.995 |
10.10 |
0.004 |
| 0.570 |
0.979 |
10.20 |
0.020 |
| 0.580 |
0.955 |
10.30 |
0.104 |
| 0.590 |
0.988 |
10.40 |
0.355 |
| 0.600 |
1.000 |
10.50 |
0.675 |
| 0.610 |
0.966 |
10.60 |
0.871 |
| 0.620 |
0.881 |
10.70 |
0.943 |
| 0.630 |
0.838 |
10.80 |
0.947 |
| 0.640 |
0.798 |
10.90 |
0.944 |
| 0.650 |
0.834 |
11.00 |
1.000 |
| 0.660 |
0.793 |
11.10 |
0.941 |
| 0.670 |
0.737 |
11.20 |
0.904 |
| 0.680 |
0.651 |
11.30 |
0.857 |
| 0.690 |
0.574 |
11.40 |
0.789 |
| 0.700 |
0.515 |
11.50 |
0.704 |
| 0.710 |
0.496 |
11.60 |
0.652 |
| 0.720 |
0.466 |
11.70 |
0.578 |
| 0.730 |
0.402 |
11.80 |
0.508 |
| 0.740 |
0.346 |
11.90 |
0.489 |
| 0.750 |
0.276 |
12.00 |
0.471 |
| 0.760 |
0.224 |
12.10 |
0.466 |
| 0.770 |
0.192 |
12.20 |
0.465 |
| 0.780 |
0.163 |
12.30 |
0.451 |
| 0.790 |
0.143 |
12.40 |
0.414 |
| 0.800 |
0.117 |
12.50 |
0.404 |
| 0.810 |
0.093 |
12.60 |
0.429 |
| 0.820 |
0.067 |
12.70 |
0.372 |
| 0.830 |
0.055 |
12.80 |
0.210 |
| 0.840 |
0.039 |
12.90 |
0.088 |
| 0.850 |
0.028 |
13.00 |
0.033 |
| 0.860 |
0.016 |
13.10 |
0.021 |
| 0.870 |
0.009 |
13.20 |
0.009 |
| 0.880 |
0.002 |
13.30 |
0.010 |
| 0.890 |
0.001 |
13.40 |
0.010 |
| 0.900 |
0.000 |
13.50 |
0.011 |
|
13.60 |
0.011 |
| 13.70 |
0.010 |
| 13.80 |
0.009 |
| 13.90 |
0.012 |
| 14.00 |
0.014 |
| 14.10 |
0.000 |
- WL : Wavelength (um)
- SRF : Spectral Response Function
